Chart Designer

<< Click to Display Table of Contents >>

Navigation:  Charting >

Chart Designer

Previous pageReturn to chapter overviewNext page



Use the Chart Designer dialog to quickly and easily customize a chart, or create a new one.

EndUser_ChartDesigner

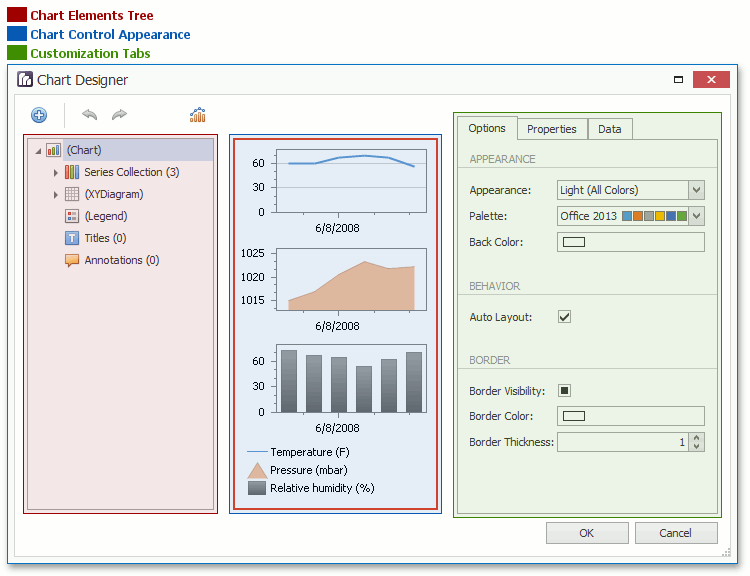

The Chart Designer is organized into three main areas, which are represented below.

EndUser_ChartDesigner_Elements

Chart Elements Tree

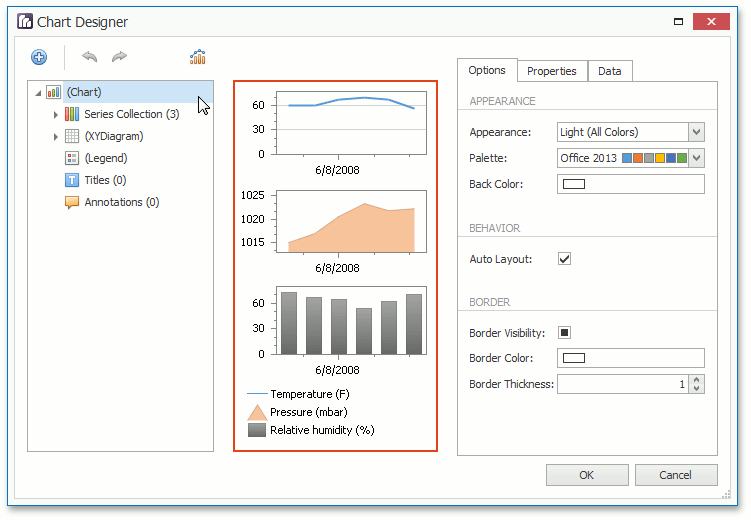

The Chart Elements Tree allows you to quickly select chart elements, change the structure of a chart (add or delete elements and change their visibility) and also represent chart structure. When you locate an element in the tree, it is highlighted in the central area. If you click the element, then its settings will be displayed in the Customization Tabs area.

EndUser_ChartDesigner_ChartElementsTree

Chart Control Appearance

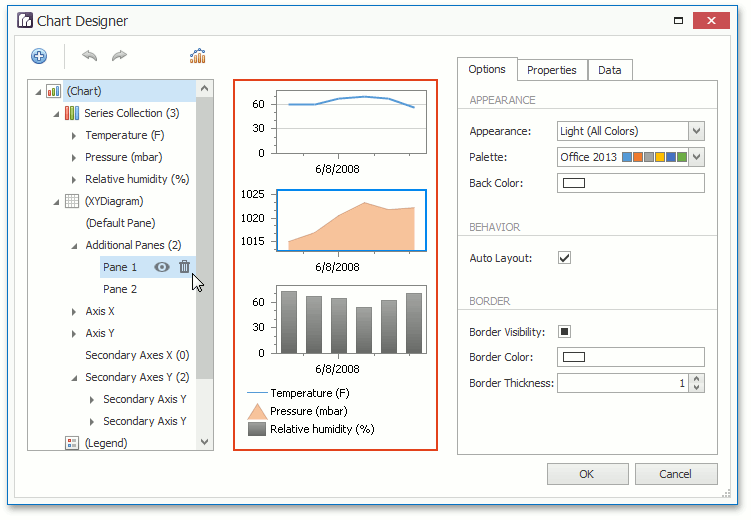

The Chart Control Appearance area allows you to see how the chart looks. Moreover, it allows you to select an item, whose settings will be displayed in the Customization Tabs area.

EndUser_ChartDesigner_ItemSelection

Customization Tabs

The Customization Tabs area allows you to customize chart element settings. Settings are separated by three tabs.

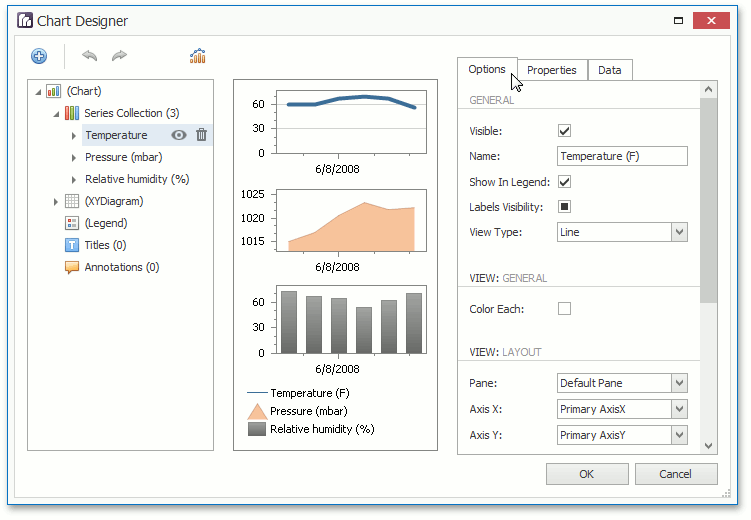

The Options Tab contains commonly used element settings.

EndUser_ChartDesigner_OptionsTab

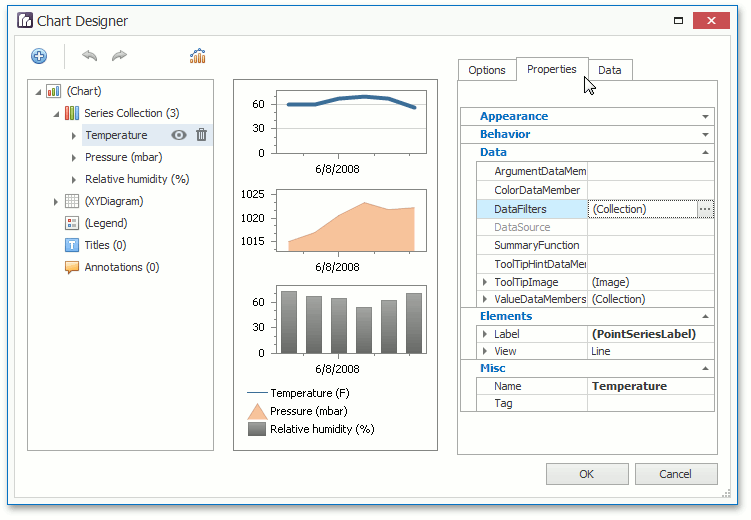

The Properties Tab contains all settings of a chart element.

EndUser_ChartDesigner_PropertiesTab

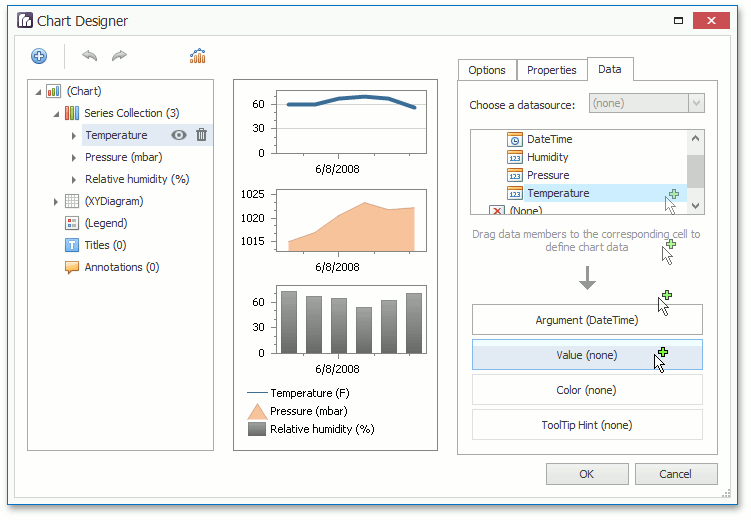

The Data Tab contains settings, which allow you to specify data source members used to plot series or other data settings of a chart element (for example, the series points values if the series is not assigned with data).

EndUser_ChartDesigner_DataTab

Note

For several chart elements, the Customization Tabs area may not contain all tabs from the Tabs list represented above.
