Delta Column

<< Click to Display Table of Contents >>

Navigation:  Dashboards > dashboard-item-settings > grid > columns >

Delta Column

Previous pageReturn to chapter overviewNext page



A delta column calculates summaries against two measures, and displays the difference between these summaries. This difference can be indicated with a numeric value displayed within the delta element and an additional delta indication.

Grid_DeltaColumn

Delta columns are bound to two measures that provide two values: the Actual value and the Target value. The difference between these values is displayed in the column.

When you switch the column type to Delta, the data item container is changed, to accept the Actual and Target measures.

Grid_ColumnTypes_DeltaColumns_DataBinding

Values in the delta column can be displayed as text, or represented by bars.

Grid_DeltaColumn_Bars

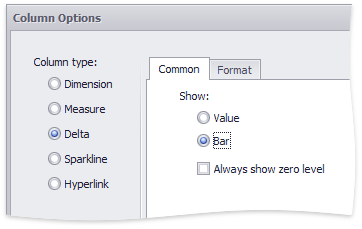

To select between these modes, invoke the Column Options window (see the Column Type Overview topic to learn how to do this) and select Value or Bar.

Grid_ColumnTypes_DeltaColumn_Options_Bar

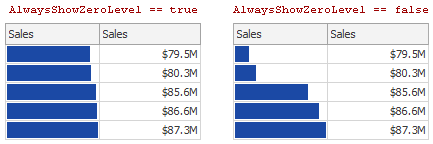

If bars are displayed, use the Always show zero level check box to specify whether the bar's minimum value is zero (checked) or an automatically selected value that ensures that the difference between bars is clearly displayed (unchecked).

Grid_ColumnTypes_AlwaysShowZeroLevel

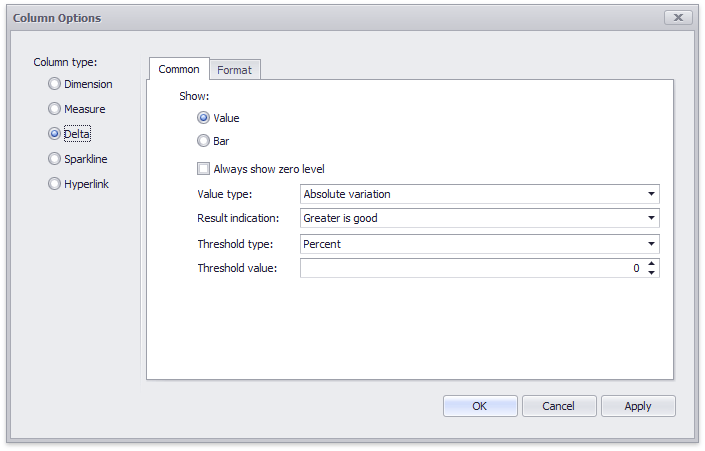

If the display type is set to Value, the Column Options window displays options that allow you to configure delta values and indication.

Grid_ColumnTypes_DeltaColumn_Options_Value

You can specify which values should be displayed in the delta column. To do this, use the Value type combo box in the Column Options window.

Actual value

Absolute variation

Percent variation

Percent of target

Grid_Delta_Values_ActualValue

Grid_Delta_Values_AbsoluteVariation

Grid_Delta_Values_PercentVariation

Grid_Delta_Values_PercentOfTarget

To specify the condition for displaying delta indication, use the Result indication combo box in the Column Options window.

Greater is good

Less is good

Warning if greater

Warning if less

No indication

Grid_Delta_Indication_LessIsGood

Grid_Delta_Indication_LessIsGood

Grid_Delta_Indication_WarningIfGreater

Grid_Delta_Indication_WarningIfLess

Grid_Delta_Indication_NoIndication

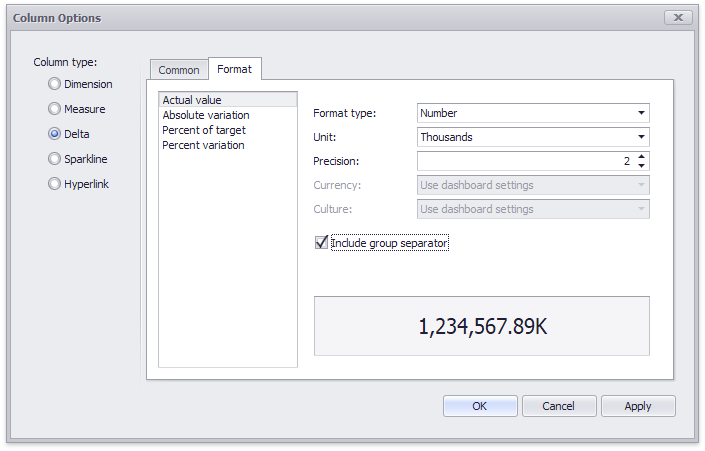

The Format tab allows you to specify the numeric display format for different value types, as described in the Formatting Data document.

grid_columntypes_deltacolumn_options_numericformat

The tab contains the following settings.

Format type - Specifies format types for numeric values.

Unit - Specifies the unit to convert the numeric values.

Precision - Specifies the number of fractional digits to display.

Currency - Specifies the currency symbol and format provided by the current culture settings.

Culture - Specifies the name of a culture that defines the currency symbol and format.

Include group separator - Specifies whether separators should be inserted between digit groups.

Comparison Tolerance

The comparison tolerance allows you to specify more advanced conditions for displaying delta indication. For instance, you can set a specific indication to be displayed when the actual value exceeds the target value by 10% or by $2K.

Use the Threshold type combo box to select whether you wish to specify the comparison tolerance in percentage values or in absolute values. Then use the Threshold value box to specify the comparison tolerance.

Grid_ColumnTypes_DeltaColumn_Options_Value
