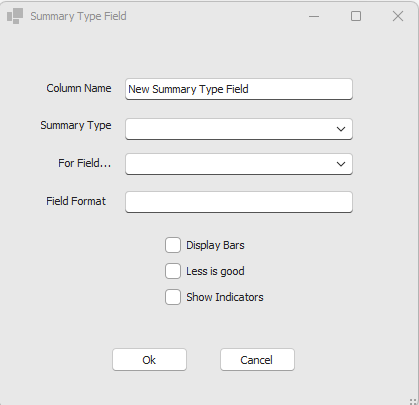

Used to create dynamic analyzer fields using running summaries.





•Column Name: The name of the column.

•Summary Type: A drop down list of selectable running types.

•For Field...: The field from which the summary is based on. This must be a field in the data area of the analyzer.

•Field Format: Used to specify the numeric formatting of the created column.



•Display Bars: Determines whether the column will display comparative bars within its data cell.

•Less is good: Determines how to display the difference in summaries between fields, either positive or negative.

•Show indicators: Displays up or down arrows, rendered red or green depending on the 'Less is good' setting.
