Chart Titles Page

<< Click to Display Table of Contents >>

Navigation:  Version 6 Enhancements > Charting > Chart Wizard >

Chart Titles Page

Tasks

Create chart titles;

Enable the word-wrapping for lengthy chart titles;

Customize the appearance and position of chart titles.

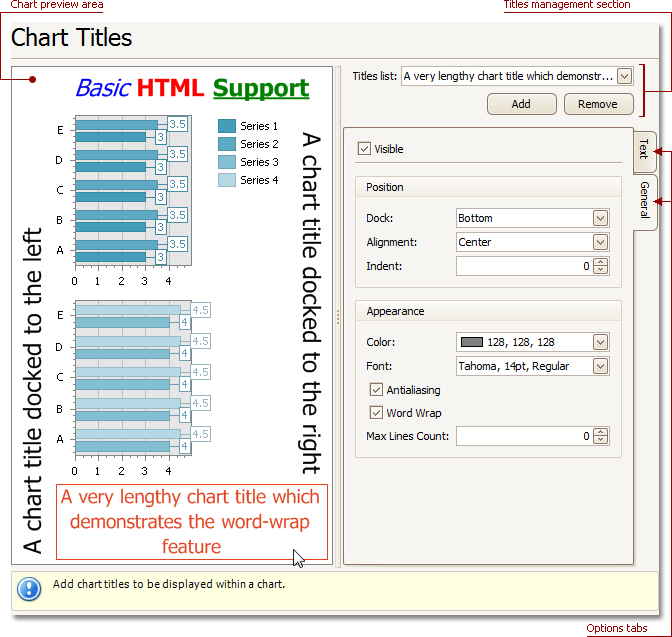

Page Elements


Chart preview area

Previews a chart's layout.

Note that you can select chart titles to be modified in the chart preview area directly.


Titles management section

Allows you to add or remove titles from the titles list, and choose a title to be customized.

Options tabs

The following tabs are available on this page.

Text

Sets a text for the selected chart title. Note that the basic HTML formatting is supported for chart titles.

General

Specifies a title's visibility, alignment and font options, and determines whether the word-wrapping is enabled for a title.
