Automatic and Manual Updates

Previous pageReturn to chapter overviewNext page



When you perform a data-aware operation in the Dashboard Designer (for instance, change the binding of a specified dashboard item or apply filtering), the dashboard sends a query to a data source and updates itself automatically according to the returned data. If the dashboard is bound to a large data source, updating the dashboard according to each change can consume a significant amount of time. In this case, you can disable automatic updates and update the dashboard manually when needed.

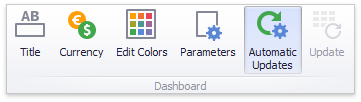

Automatic updates are enabled by default and can be managed using the Automatic Updates button in the Home ribbon tab.

AutomaticUpdatesButton_Ribbon

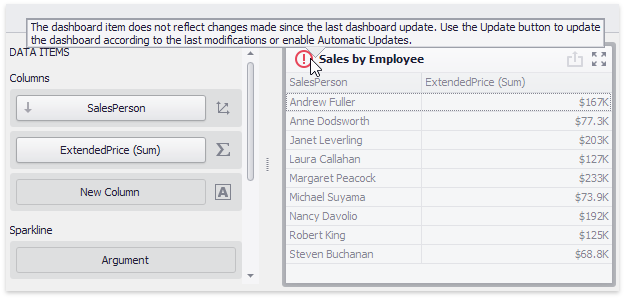

Click this button to disable automatic updates. In this case, the dashboard item will not be updated automatically according to each change. Imagine that you have a Grid dashboard item containing the dimension and measure columns. If you change the sort order of the Sales Person column or change the summary type of the Extended Price column, the Grid will be shaded and will display the UpdateCaptionIcon icon within its caption.

AutomaticUpdates_Grid_Main

This indicates that this dashboard item requires the update to reflect changes. To update the Grid manually, click the Update button in the Home ribbon tab.

UpdateButton_Ribbon

Note

Note that automatic updates are disabled if you click the Cancel button on the loading panel when performing a time-consuming operation.
