The Card dashboard item allows you to specify the number of columns or rows in which individual cards are arranged.

Use the buttons in the Content Arrangement group of the Design Ribbon tab to control how cards are arranged.

The Auto Arrange option is enabled by default, which automatically resizes cards to fit within the dashboard item.

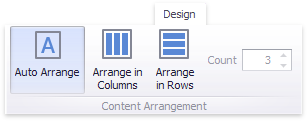

Cards_Layout_AutoArrange_Ribbon

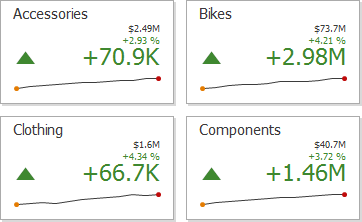

Cards_Layout_AutoArrange_2

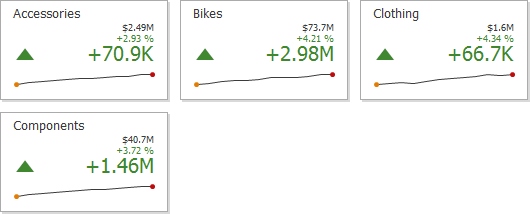

You can also specify the number of columns in which cards are arranged. Click the Arrange in Columns button and specify the appropriate number in the Count field.

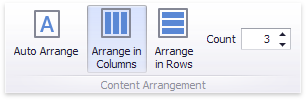

Cards_Layout_ArrangeInColumns_Ribbon

Cards_Layout_ArrangeInColumns_2

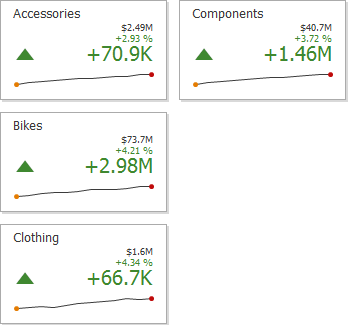

Similarly, you can arrange cards in a specific number of rows.

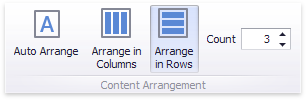

Cards_Layout_ArrangeInRows_Ribbon

Cards_Layout_ArrangeInRows_2
