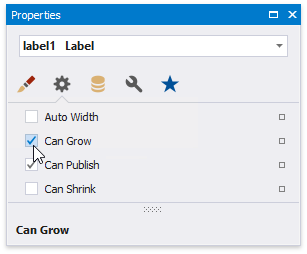

Use the control's Can Grow and Can Shrink properties to make a data-bound control automatically adjust its height to its contents.
Can Grow = No |
Can Grow = Yes |
|
|
Can Shrink = No |
Can Shrink = Yes |
|
|
Note
This feature does not work with anchoring enabled, as well as for labels that are used to display summary function results.
Use the Auto Width property to make a data-bound Label or Character Comb automatically adjust its width to its content. This option behavior depends on the control's current horizontal alignment (Text Alignment property value).
•Text Alignment = Left
•Text Alignment = Right
•Text Alignment = Center
The control's Word Wrap property allows you to make a control display its contents in multiple lines when it does not fit into the control's dimensions.
Auto Width = No, Word Wrap = No |
Auto Width = No, Word Wrap = Yes |
|
|
Auto Width = Yes, Word Wrap = No |
Auto Width = Yes, Word Wrap = Yes |
|
|

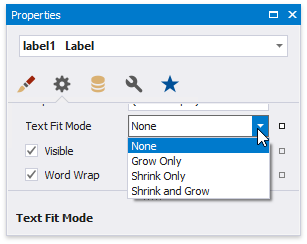

You can also use the opposite Text Fit Mode property to adjust a label or table cell's font size to fit the control's bounds.
Text Fit Mode = None |
Text Fit Mode = Grow Only |
Text Fit Mode = Shrink Only |
Text Fit Mode = Shrink And Grow |
|
|
|
|
This property is not available in the following cases:
•The Can Grow, Can Shrink or Auto Width option is enabled;
•The label's Angle property is specified;
•The control's Anchor Horizontally or Anchor Vertically property is set to Both.
