Resolve overlapping of point labels;

Customize the appearance of point labels.

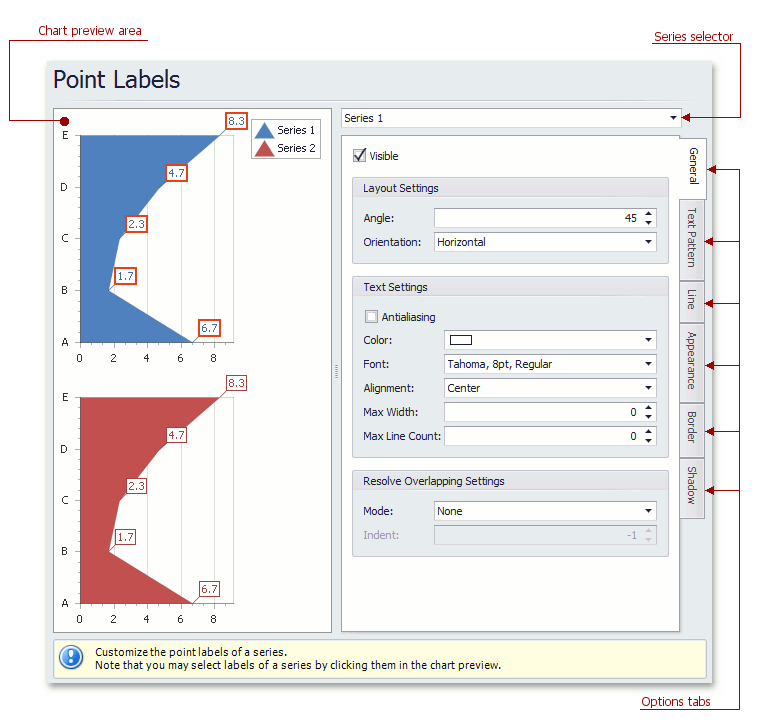

ChartWizard_PointLabelsPage

Note

The point labels are hidden in the chart control by default. To show series point labels, check the Visibile check box.

Chart preview area

Previews a chart's layout.

Note that you can select point labels to be modified directly in the chart preview area.

Series selector

Specifies a series to be customized.

Options tabs

The following tabs are available on this page.

General

Specifies whether labels should be visible and shown for zero values, determines their text and resolves overlapping settings.

Text Pattern

Specifies a text pattern to format series point labels.

Line

Determines whether label lines should be visible, and specifies their appearance.

Appearance

Specifies the background color and fill style of labels.

Border

Determines whether label borders should be visible, and defines their color and thickness.

Shadow

Specifies whether a label's shadow should be visible, and defines its color and size.
