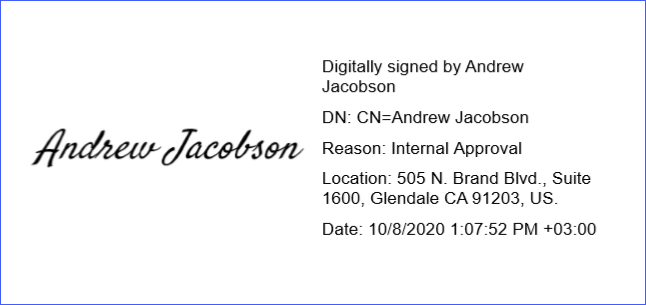

This tutorial describes how to create a report with a visual PDF signature.

pdf-signature-report-result-after-sign-lower

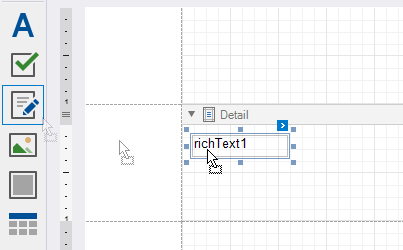

1.Drop the RichText control from the report controls Toolbox tab onto the Detail band.

pdf-signature-report-drop-rich-text

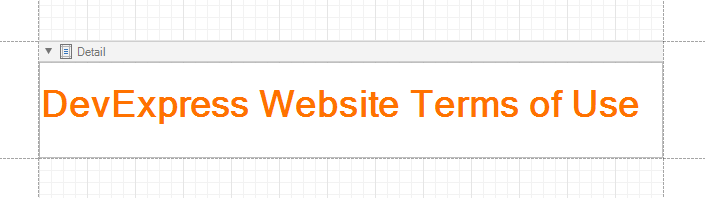

2.Double-click the control and insert the DevExpress Website Terms of Use text.

pdf-signature-report-add-data-to-rich-text

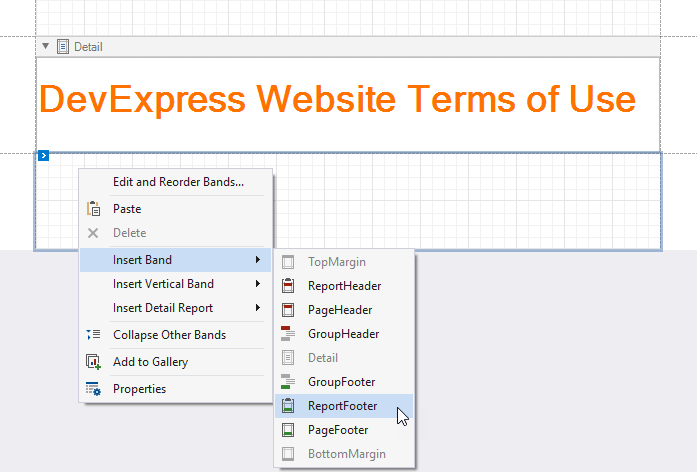

3.Right-click the design surface. Select Insert Band / ReportFooter from the context menu. Enable the footer band's Print at Bottom property.

pdf-signature-report-add-report-footer

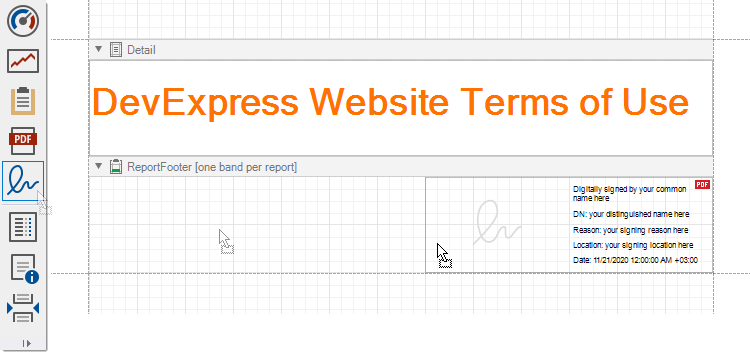

4.Drop the PdfSignature control from the report controls Toolbox tab onto the Report Footer band.

pdf-signature-report-add-pdf-signature

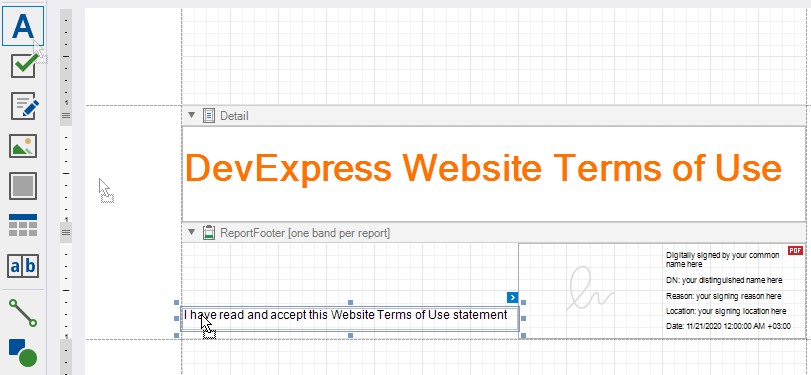

5.Place the Label control to the left of the PdfSignature control and add the following text: I have read and accept this Website Terms of Use statement.

pdf-signature-report-add-xr-label-and-line

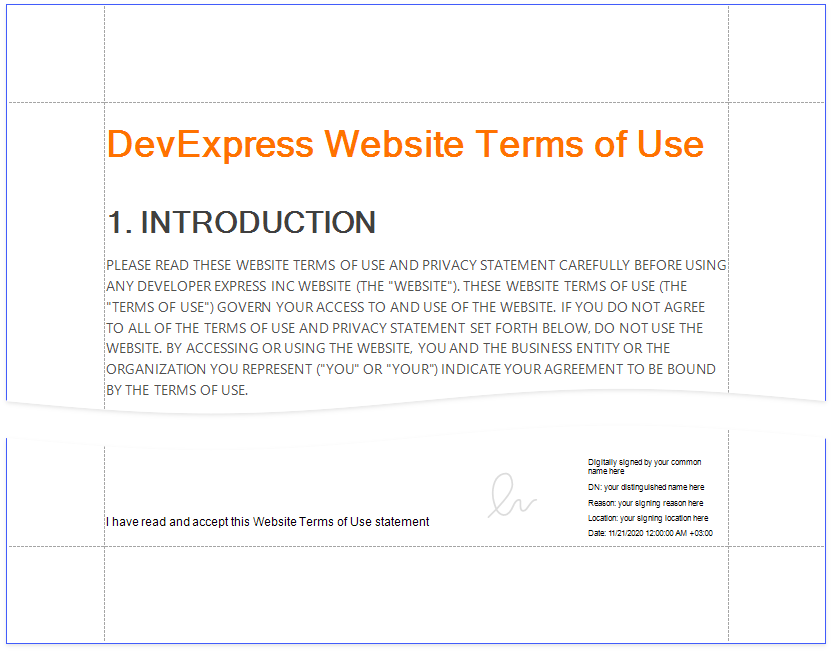

Click the Preview Tab to show the result.

pdf-signature-report-result-before-sign

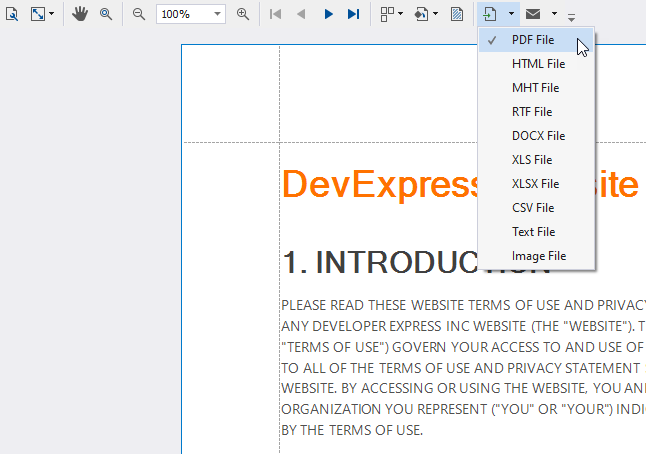

1.In Preview, click Export Document and select PDF File.

pdf-signature-report-sign-1

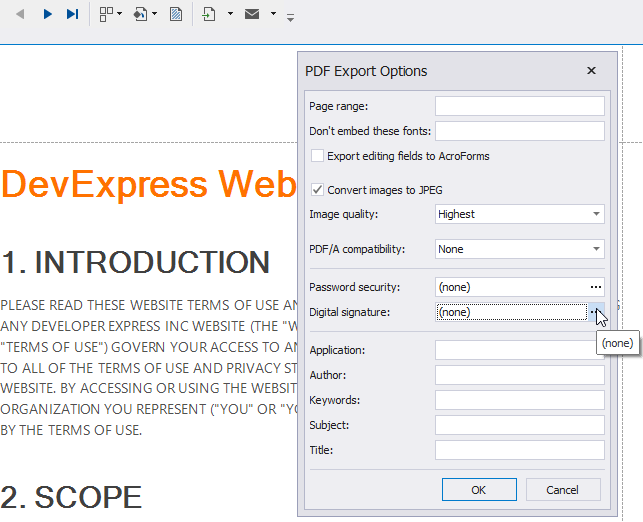

2.In the invoked PDF Export Options dialog, click the Digital Signature option's ellipsis button.

pdf-signature-report-sign-2

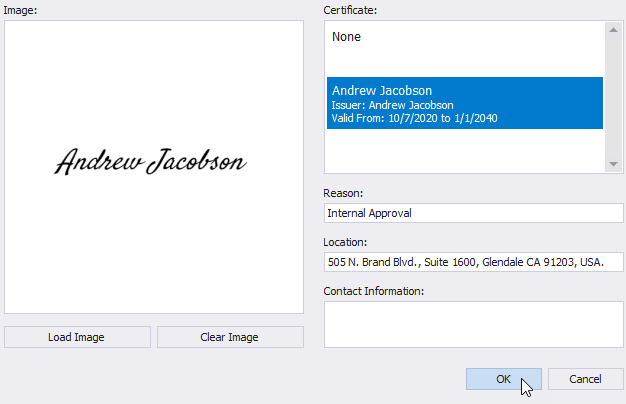

3.In the invoked Signature Options dialog, choose a certificate and specify signature details.

pdf-signature-report-sign-3

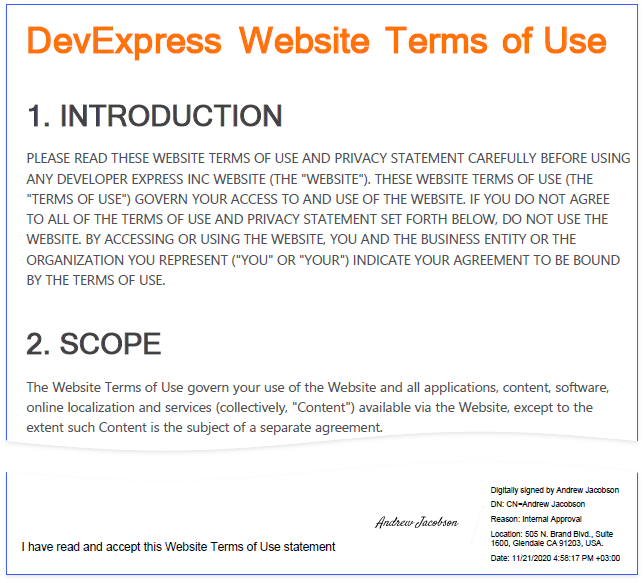

Save and open the document to show the final result.

pdf-signature-report-result-after-sign
