Customize the view-type-specific properties of series;

Customize the appearance and border settings of series;

Add or remove financial indicators (Fibonacci indicators, trendlines and regression lines).

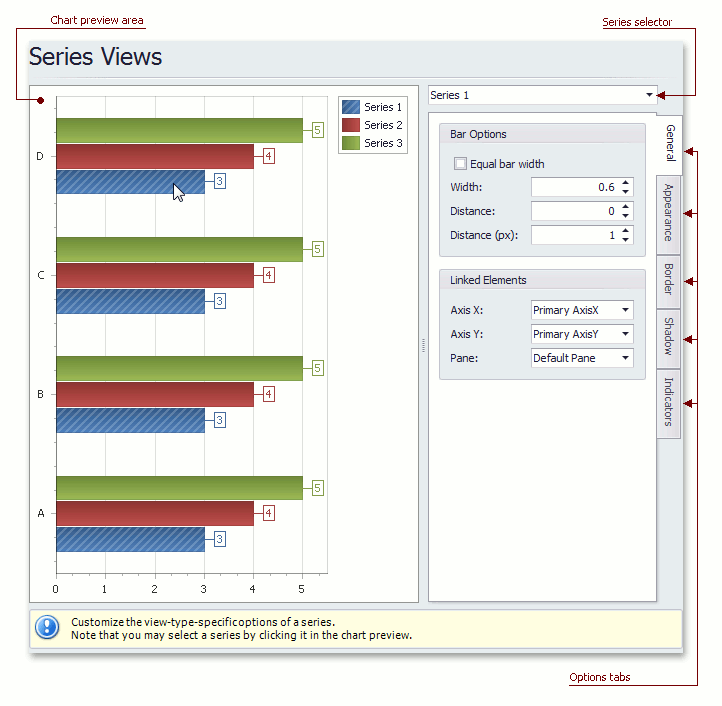

ChartWizard_SeriesViewsPage

Chart preview area

Previews a chart's layout.

Note that you can select a series to be modified directly in the chart preview area.

ChartWizard_7a

Series selector

Specifies a series to be customized.

Options tabs

The following tabs are available on this page.

General

Specifies a series bar's width, distance, color, transparency, etc.

Appearance

Specifies a series color, transparency and fill style. Additionally, determines whether series points should be painted individually.

Border

Determines whether a series border should be visible, and defines its color and thickness.

Shadow

Specifies whether a series' shadow should be visible, determines its color and size.

Indicators

Allows you to add or remove indicators of a required kind (Regression Line, Trend Line, Fibonacci Arcs, Fibonacci Fans, Fibonacci Retracement and many others).
