The Report Designer Toolbar includes the Home, Layout, Page, and View tabs for general commands as well as contextual tabs for commands relating to the selected report controls.

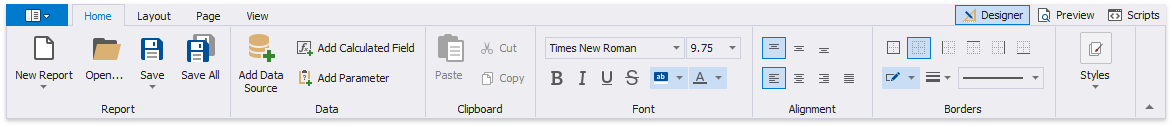

eurd-win-toolbar-home-page

Use commands in this tab to

add new reports, load and save report layouts;

add data sources, calculated fields, and report parameters;

delete the selected report elements, place them on the clipboard and paste them onto report bands;

customize font, color, formatting and alignment settings;

create new styles based on the selected control's appearance settings and then apply the created styles to other controls.

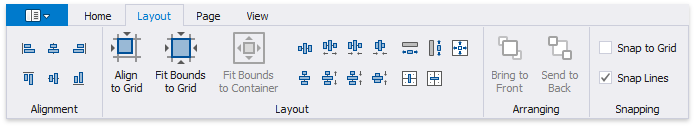

eurd-win-toolbar-layout-page

This tab provides commands that

align report elements to each other or the snap grid;

change the report element size relative to other report elements and to fit the snap grid or the parent container;

change the stacked elements' order;

select the snapping mode.

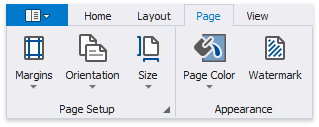

eurd-win-toolbar-page-page

These commands allow you to

set the page margins, orientation, and paper size;

specify the page's background color;

add watermark text to a report or turn a picture into a report's background.

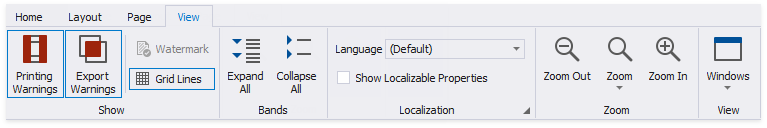

eurd-win-toolbar-view-page

This tab enables you to

turn on/off export and printing warnings to highlight intersecting controls and controls placed outside page margins;

display the document's watermark on the design surface;

specify whether to draw the snap grid;

expand or collapse all report bands;

change the report language and show localizable properties in the Property Grid;

zoom the design surface;

manage the Report Designer panels' visibility.

Contextual tabs are visible whenever you select a specific report element and provide commands applicable to the selected element's type.

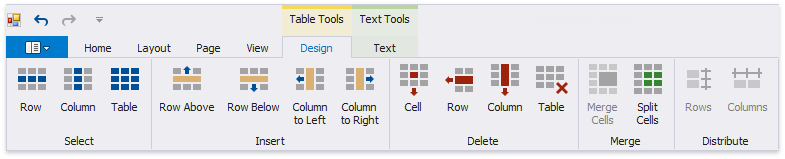

The following image demonstrates the table cell's available tabs:

eurd-win-toolbar-contextual-tabs
