Working With R

<< Click to Display Table of Contents >>

Navigation:  User Manual >

Working With R

Previous pageReturn to chapter overviewNext page



Plato Analysis has the ability to create R Data Frames for using within an external R GUI.



A discussion of R is outside the scope of this document, and the reader is referred to the ample documentation online.





To setup R for Plato Analysis Data Set exporting, the following prerequisites must be met.



The Microsoft R environment must be installed. This can currently be found in https://mran.microsoft.com/download. This is a free download.



Copy the files in [Program Files\[CPRT Plato Analysis Install Folder]\RStudio to the bin folder of the R installation folder. The default for this folder will be



C:\Program Files\Microsoft\MRO\R-3.3.0\bin\x64.





Restart Plato Analysis if already running.





DataTables as R Data Frames



R Data Frames may be created directly from Query Builders or from a DataGrid.



The created dataframe is called griddata for a DataGrid. A partial dump of the data might yield something similar to the following:

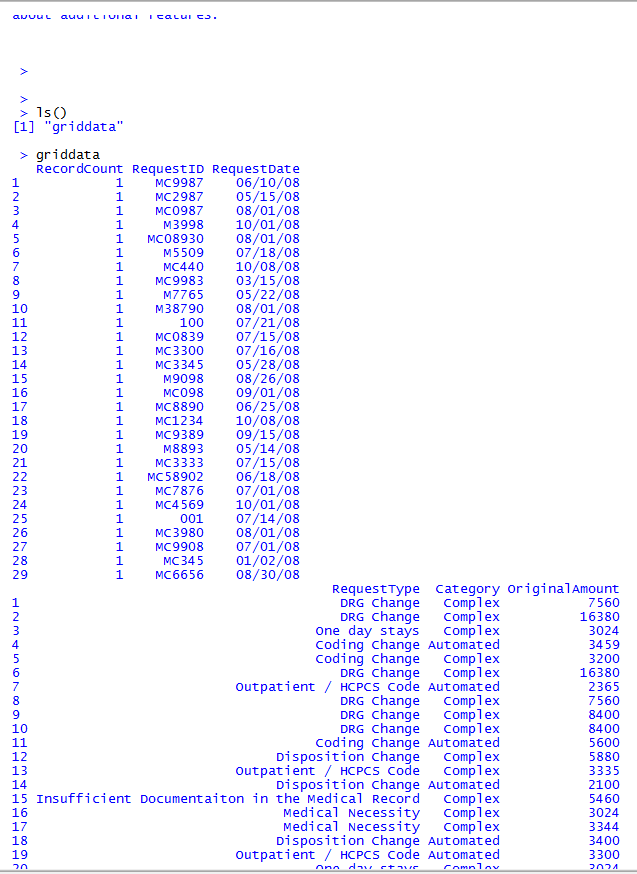

R_GridData







As this is a standard R dataframe, any and all R indexing, functions, and libraries may be applied.
