Delta

Previous pageReturn to chapter overviewNext page



Gauges allow you to display the difference between the actual and target values of a particular parameter. This difference is called delta.

Delta is shown with a delta indicator (indicating whether the actual value is less than or greater than the target value) and delta values (representing this difference as an absolute value or a variation).

Delta_Gauge

To customize settings that relate to the calculation and display of deltas, use the options buttons (the DataItemsArea_OptionsButton icon) displayed next to the data item container in the Gauges section of the DATA ITEMS pane.

Gauges_DeltaOptions_OptionsButton

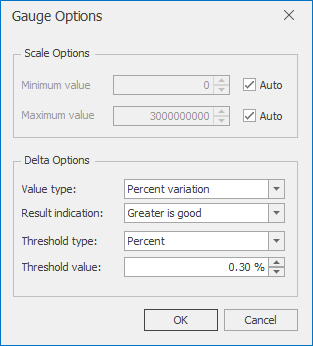

These buttons invoke the Gauge Options dialog.

Gauges_DeltaOptions_OptionsWindow

Use it to define the condition for displaying delta indication, specify which delta values should be displayed, and introduce the comparison tolerance.

Delta Values

Delta Indication

Comparison Tolerance

Delta Values

You can specify which values should be displayed within gauges. Use the Value type combo box in the Gauge Options window to select the value that will be displayed as the delta value.

Value Type

Result

Actual Value

Gauges_Delta_Values_ActualValue

Absolute Variation

Gauges_Delta_Values_AbsoluteVariation

Percentage Variation

Gauges_Delta_Values_PercentVariation

Percentage of Target

Gauges_Delta_Values_PercentOfTarget

Delta Indication

You can specify the condition for displaying delta indication. To do this, use the Result indication combo box in the Gauge Options window.

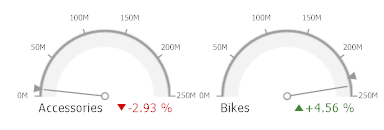

Greater is Good - The 'good' indication is displayed if the actual value exceeds the target value; if the target value exceeds the actual value, the 'bad' indication is displayed.

Gauges_Delta_Indication_GreaterIsGood

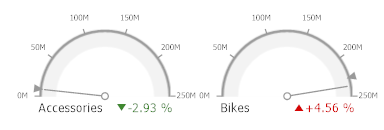

Less is Good - The 'bad' indication is displayed if the actual value exceeds the target value; if the target value exceeds the actual value, the 'good' indication is displayed.

Gauges_Delta_Indication_LessIsGood

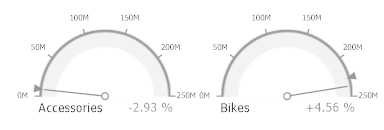

No Indication - Indication is not displayed.

Gauges_Delta_Indication_NoIndication

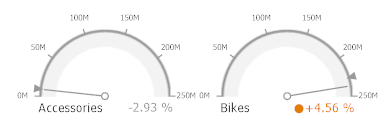

Warning if Greater - A warning is displayed if the actual value exceeds the target value; otherwise, no indication is displayed.

Gauges_Delta_Indication_WarningIfGreater

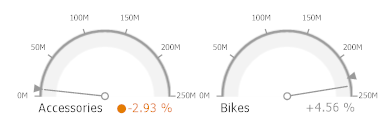

Warning if Less - A warning is displayed if the target value exceeds the actual value; otherwise, no indication is displayed.

Gauges_Delta_Indication_WarningIfLess

Comparison Tolerance

The comparison tolerance allows you to create more advanced conditions for displaying delta indication. For instance, you can specify that a specific indication should be displayed when the actual value exceeds the target value by 10% or by $2K.

Use the Threshold type combo box to select whether you wish to specify the comparison tolerance in percentage values or in absolute values. Then use the Threshold value box to specify the comparison tolerance.
