Providing Data

Previous pageReturn to chapter overviewNext page



The Dashboard Designer allows you to bind various dashboard items to data in a virtually uniform manner. To learn more, see the Bind Dashboard Items to Data topic.

The only difference is in the data sections that the required dashboard item has. This topic describes how to bind a Pie dashboard item to data in the Designer.

Binding to Data in the Designer

Transposing Arguments and Series

Binding to Data in the Designer

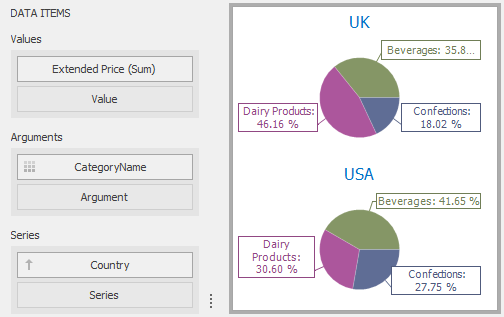

The image below shows a sample Pie dashboard item that is bound to data.

PiesProvidingData_Main

To bind the Pie dashboard item to data, drag and drop a data source field to a placeholder contained in one of the available data sections. A table below lists and describes Pie's data sections.

Section

Description

Values

Contains data items that define the share of pie segments. In case of negative measure values, Pie uses their absolute values.

Arguments

Contains data items that provide values used to label pie segments.

Series

Contains data items whose values are used to label pie charts.

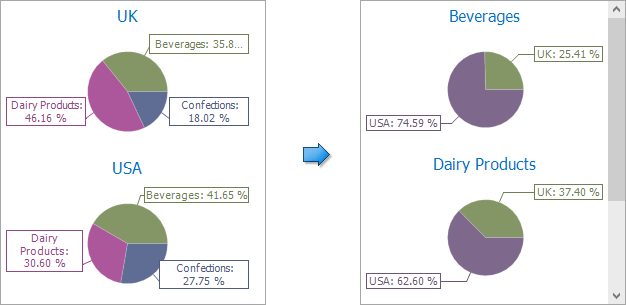

Transposing Arguments and Series

The Pie dashboard item provides the capability to transpose pie arguments and series. In this case, data items contained in the Arguments section are moved to the Series section, and vice versa.

Pies_Transpose

To transpose the selected Pie dashboard item, use the Transpose button in the Home ribbon tab.

TransposeButton_Ribbon
