Invoke a Filter Popup Window

You can invoke a Filter Window from the Pivot Table or from a Field List (to learn about Field Lists, see Field List Overview).

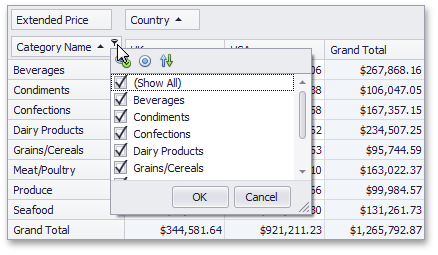

Invoke a Filter Window from the Pivot Table

Field headers display special buttons used to invoke a Filter Window. Follow the steps below:



1.Hover over the header of a field whose data you need to filter. A filter button (the img7613 icon) will be highlighted.


2.Click this filter button to display a Filter Window.

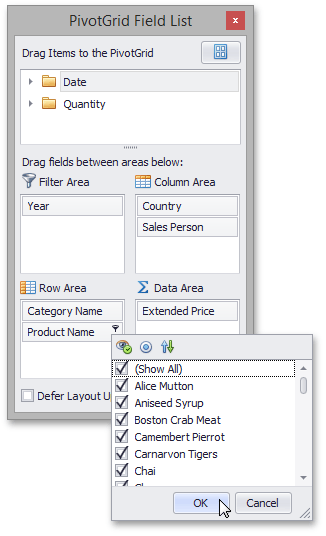

Invoke a Filter Window from a Field List

You can use an advanced Field List to filter field values.


First, invoke a Field List. For information on how to do this, see Invoke a Field List.

To open a Filter Window, click the filter button displayed in the field header.
