The built-in drill-down capability allows end-users to change the detail level of data displayed in dashboard items on the fly. To learn more about drill-down concepts common to all dashboard items, see the Drill-Down topic.

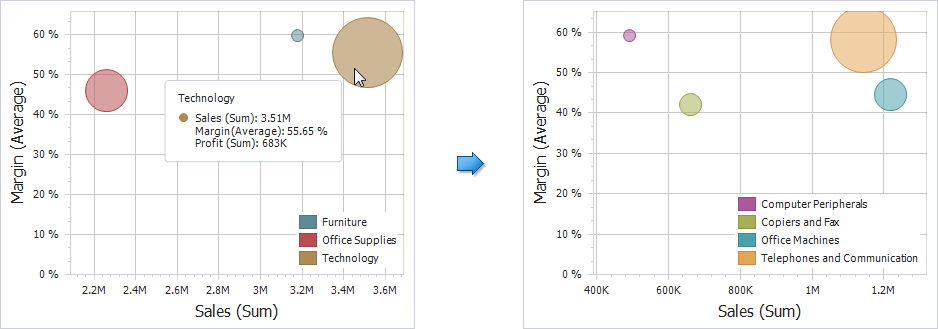

When drill-down is enabled, you can click a point to view the details.
Note
When Master Filtering is enabled, you can view the details by double-clicking a point.
Drill-down requires that the Arguments section contain several dimensions, from the least to the most detailed dimension.
Note
To enable drill-down, click the Drill Down button in the Data Ribbon tab (or the
button if you are using the toolbar menu).
To return to the previous detail level (drill up), use the Drill Up (
) button in the caption of the Scatter Chart dashboard item, or the Drill Up command in the context menu.
