Invoke a Summary Filter Window

To enable and configure filtering by cell values, use the Summary Filter Window.

You can invoke a Summary Filter Window from the Pivot Table or from a Field List (to learn about Field Lists, see Field List Overview).

Invoke a Summary Filter Window from the Pivot Table

Field headers located in the Data Area display special buttons used to invoke a Summary Filter Window. Follow the steps below.

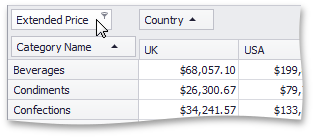

1.Hover over the header of a field whose data you need to filter. A filter button (img7613) will be highlighted.

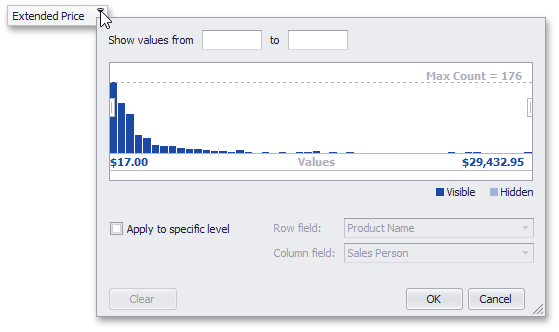

2.Click this filter button to display a Summary Filter Window.


Invoke a Summary Filter Window from a Field List

You can use an advanced Field List to filter field values.


First, invoke a Field List. For information on how to do this, see Invoke a Field List.

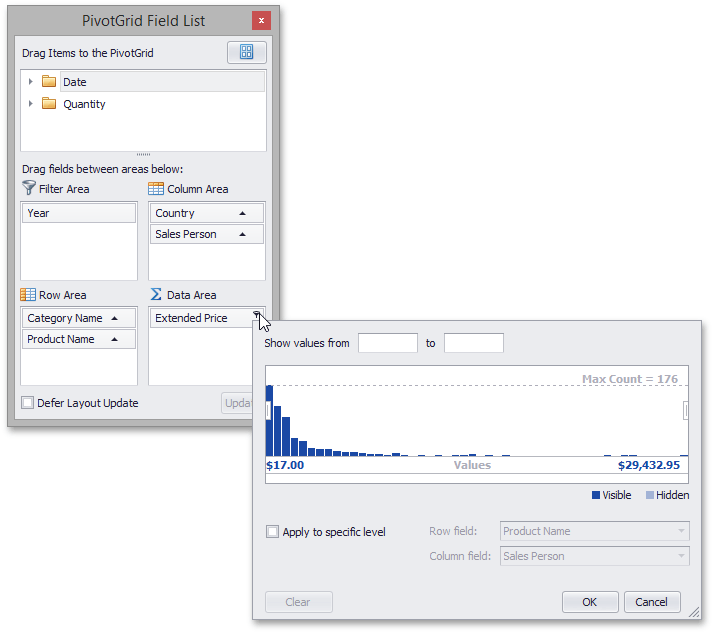

To open a Summary Filter Window, click the filter button displayed in the field header.
