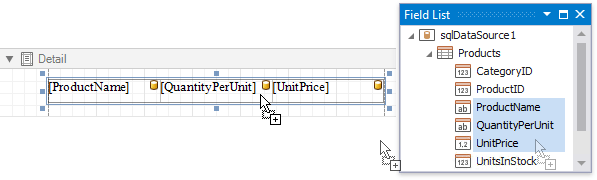

You can create a table control with cells bound to data fields obtained from a report's data source using the Field List. Select data fields by clicking them while holding the CTRL or SHIFT key and drop them onto the Detail band.

eurd-win-table-control-drop-fields-from-field-list

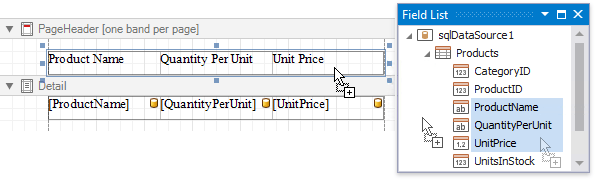

Drag and drop the same fields with the right mouse button to create column headers with the corresponding field names.

eurd-win-table-control-drop-captions-from-field-list

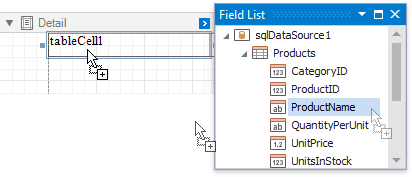

You can bind individual table cells to data in the same ways as Label controls. Dropping a data field onto an existing cell binds this cell to a corresponding field.

eurd-win-bind-existing-table-cell-to-data

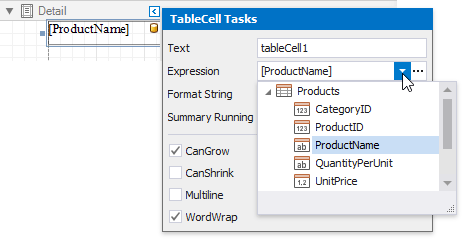

Alternatively, click the cell's smart tag, expand the Expression drop-down list and select the required data field

eurd-win-table-cell-smart-tag-expression-binding

Clicking the Expression option's ellipsis button invokes the Expression Editor. This allows you to construct a complex binding expression involving two or more data fields.

See the Bind Report Controls to Data topic to learn more about creating data-aware controls.

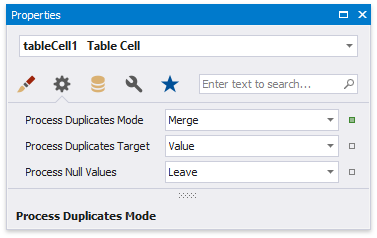

The Process Duplicates Mode and Process Duplicates Target options enable you to merge cells with identical values.

eurd-win-table-cell-process-duplicates-mode
