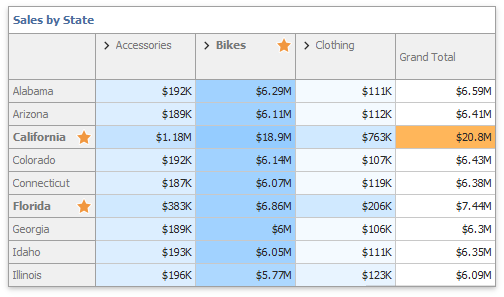

A Pivot dashboard item applies conditional formatting to cell values. You can calculate a format rule by measures placed in the Values section and dimensions placed in the Columns or Rows section.

Note

Note that you can use hidden measures to specify a condition used to apply formatting to visible values.

pivot-with-applied-format-rules

The following list contains available format rules and corresponding data types:

•numeric

oBar

•string

oValue (with a condition type set to Equal To, Not Equal To or Text that Contains)

oExpression

•date-time

oValue

oA Date Occurring (for dimensions with a continuous date-time group interval)

oBar

You can create and edit format rules in the following ways:

•Click the Edit Rules button on the Home ribbon tab.

•Click the measure/dimension menu button in the Data Item's pane and select Add Format Rule/Edit Rules.

Refer to the following topic for information on how to create and edit format rules: Conditional Formatting Common.

You can configure and customize current format condition appearance settings.

•Choose a predefined background color/font or click an empty square to add a new preset in the Appearance tab.

NewRuleDialog_AppearanceTab

•Add a predefined icon in the Icons tab.

The Appearance tab contains the following Pivot-specific settings:

Option	Description
Enabled	Enables/disables the current format rule.
Intersection Mode	Specifies the level at which to apply conditional formatting to pivot cells.
Intersection Row/Column Dimension	Applies the format rule to the specified row/column dimension, if you select the Specific Level as the intersection mode.
Apply to Row/Column	Specifies whether to apply the formatting to the Pivot item's entire row/column.

A Pivot item allows you to specify the field intersection to which a format rule is applied.

Intersection Level Mode	Description
Auto	Identifies the default level. For the Pivot dashboard item, Auto identifies the First Level.
First Level	The first level values are used to apply conditional formatting.
Last Level	The last level values are used to apply conditional formatting.
All Levels	All pivot data cells are used to apply conditional formatting.
Specific Level	The specified measures/dimensions are used to apply conditional formatting.

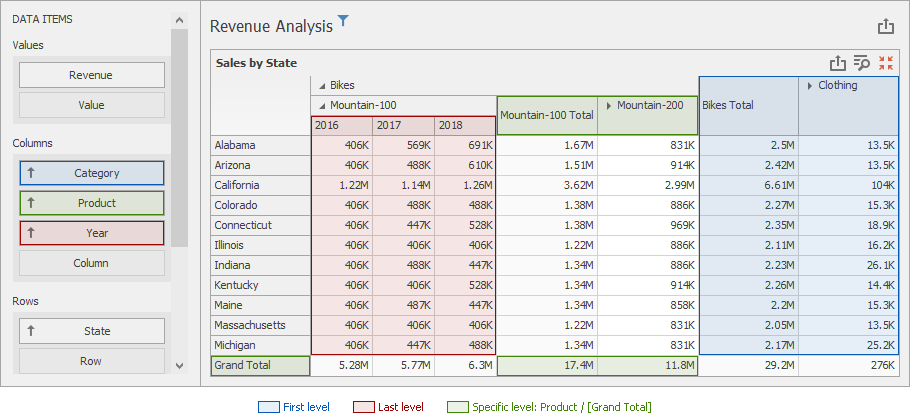

The image below displays different intersection levels with the applied conditional format rule:

winforms_pivot_intersection_level_mode

To apply a format rule to the row or column Grand Total, change the Intersection Level Mode to Specific level and set the [Grand Total] value as the intersection row/column dimension.

Note the following limitations:

1.The dashboard cannot calculate conditional formatting in a Pivot item for multiple range levels with percentage values. In this case, the "All Levels" intersection mode is not available for a conditional formatting rule.

2.The format condition dialog does not contain any Pivot-specific settings for a dimension from Columns and Rows.
