The built-in drill-down capability allows you to change the detail level of data displayed in dashboard items on the fly. To learn more about drill-down concepts common to all dashboard items, see the Drill-Down topic.

The Grid dashboard item supports drill-down for rows.

When drill-down is enabled, you can click a grid row to view the details.

Note

When Master Filtering is enabled, you can view the details by double-clicking a grid row.

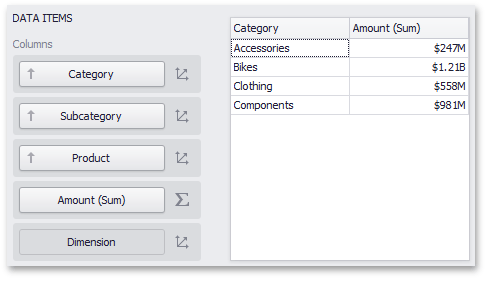

Drill-down requires that the Columns section contains several dimensions at the top, from the least detailed to the most detailed dimension.

Note

In OLAP mode, you can perform drill-down for either a hierarchy data item or several dimension attributes.

To enable drill-down, click the Drill Down button in the Data Ribbon tab (or the button if you are using the toolbar menu).

To return to the previous detail level (drill up), use the Drill Up button (the icon) within the grid's caption area, or the Drill Up command in the grid's context menu.
