Layout

Previous pageReturn to chapter overviewNext page



This topic describes how to control the Pivot dashboard item layout, the visibility of totals and grand totals, etc.

Layout Type

Totals Visibility

Totals Position

Values Visibility

Values Position

Reset Layout Options

Layout Type

If the Pivot dashboard item contains a hierarchy of dimensions in the Rows section, you can specify the layout used to arrange values corresponding to individual groups.

Layout type

Example

Description

Compact

Pivot_CompactLayout

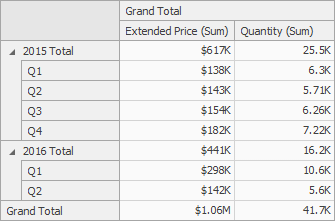

Displays values from different Row dimensions in a single column. Note that in this case totals are shown at the top of a group, and you cannot change totals position.

Tabular

Pivot_TabularLayout

Displays values from different Row dimensions in separate columns.

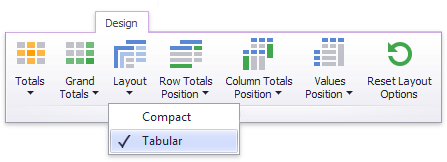

Use the Layout button in the Design ribbon tab to change the Pivot layout.

Pivot_LayoutButtonRibbon

Totals Visibility

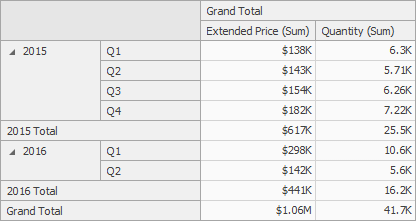

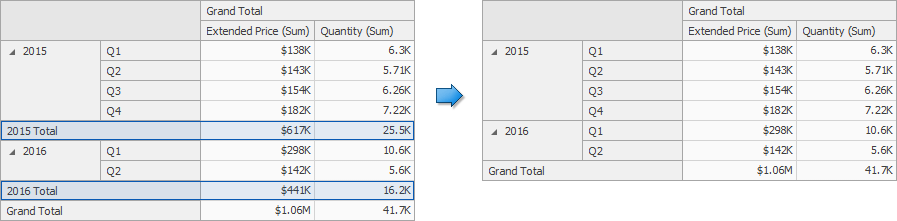

You can control the visibility of totals and grand totals for the entire Pivot dashboard item. For instance, the image below displays the Pivot dashboard item with the disabled row totals.

Pivot_DisableRowTotals_Example

To manage the visibility of totals and grand totals, use the Totals and Grand Totals buttons in the Design ribbon tab, respectively.

Pivot_TotalsVisibilityRibbon

These buttons invoke a popup menu that allows you to manage the visibility of column and row totals/grand totals separately.

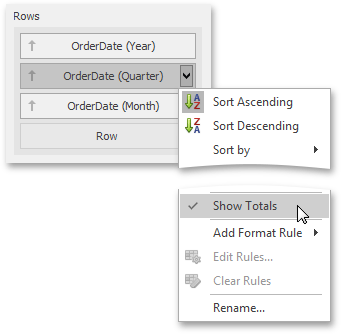

Moreover, you can control the visibility of totals for individual dimensions/measures by using the data item's context menu (Show Totals and Show Grand Totals options).

Pivot_ShowTotals_DataItemMenu

Totals Position

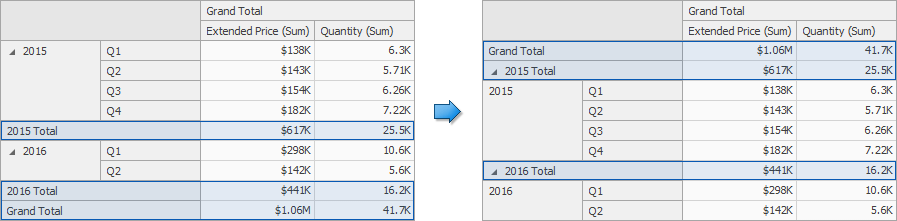

If necessary, you can change the Pivot dashboard item’s totals/grand totals position. For instance, in the image below the row totals are moved from the bottom to the top.

Pivot_RowTotals_Bottom_Top

To manage totals position, use the Row Totals Position and Column Totals Position buttons in the Design ribbon tab.

Pivot_TotalsPositionRibbon

Values Visibility

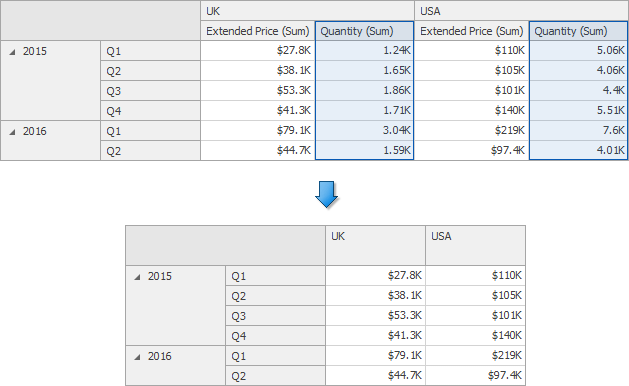

The Pivot dashboard item can contain several measures in the Values section to hide summary values corresponding to specific measures. For instance, the image below shows the Pivot with hidden Quantity values.

Pivot_ValuesVisibility

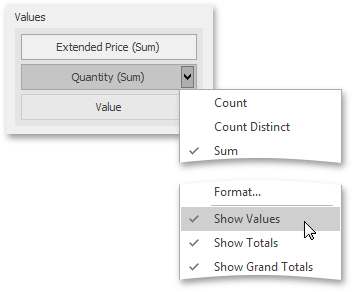

To do this, use the Show Values command in the measure menu.

Pivot_ValuesVisibility_Menu

Values Position

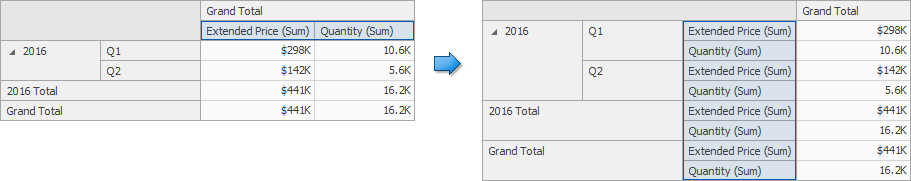

The Pivot dashboard item allows you to control the position of headers used to arrange summary values corresponding to different measures. For instance, you can display values in columns or rows.

Pivot_ValuesPosition

To manage this position, use the Values Position button in the Design ribbon tab.

Pivot_ValuesPositionRibbon

Reset Layout Options

To reset layout options, click the Reset Layout Options button in the Design ribbon tab.

Pivot_ResetLayoutOptionsRibbon
