Providing Data

<< Click to Display Table of Contents >>

Navigation:  Dashboards > dashboard-item-settings > pivot >

Providing Data

Previous pageReturn to chapter overviewNext page



The Dashboard Designer allows you to bind various dashboard items to data in a virtually uniform manner. To learn more, see the Bind Dashboard Items to Data topic.

The only difference is in the data sections that the required dashboard item has. This topic describes how to bind a Pivot dashboard item to data in the Designer.

Binding to Data in the Designer

Transposing Columns and Rows

Binding to Data in the Designer

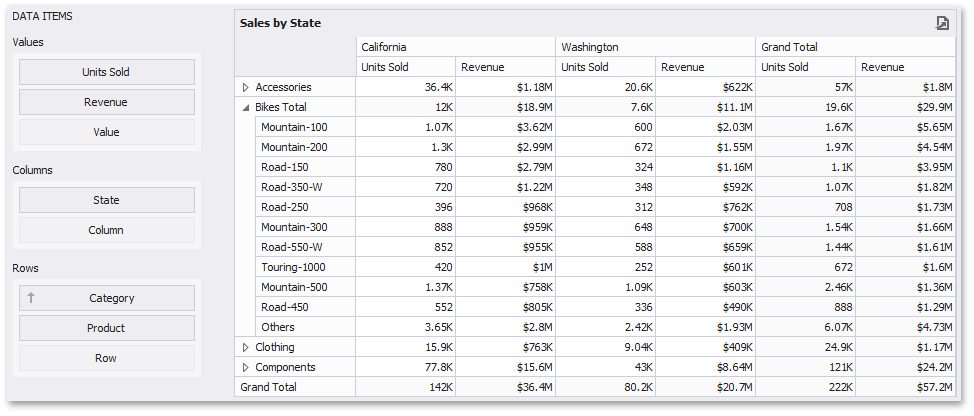

The image below shows a sample Pivot dashboard item that is bound to data.

PivotProvidingData_Main

To bind the Pivot dashboard item to data, drag and drop a data source field to a placeholder contained in one of the available data sections. A table below lists and describes a Pivot's data sections.

Section

Description

Values

Contains data items used to calculate values displayed in the pivot table.

Columns

Contains data items whose values are used to label columns.

Rows

Contains data items whose values are used to label rows.

Transposing Columns and Rows

The Pivot dashboard item provides the capability to transpose pivot columns and rows. In this case, data items contained in the Columns section are moved to the Rows section and vice versa.

Pivot_Transpose

To transpose the selected Pivot dashboard item, use the Transpose button in the Home ribbon tab.

TransposeButton_Ribbon
