The Control Toolbox lists all available controls and allows you to add them to your report.

The available report controls can be divided into the following categories:

The following controls are most commonly used to display data in a report.

The following controls are connected to data individually, without accessing a report's data source.

The following controls allow you to draw shapes in a report and customize the report layout.

The dynamic content of the following controls is not obtained from a data source.

To add a control from the Toolbox, do one of the following.

•Double-click an item in the Toolbox for the appropriate control, which will be created at the Detail band's top left corner.

•Drag and drop an item from the Toolbox onto the required location within a report.

•Select an item in the Toolbox, and then click the required location within a report.

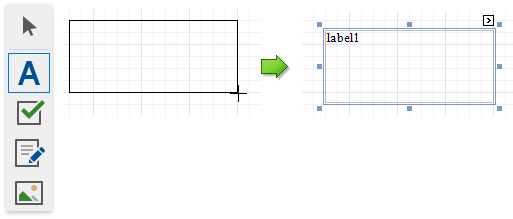

•Select an item in the Toolbox, and then indicate the bounding rectangle by holding the left mouse button.

Select the Pointer item when you need to perform selection, re-positioning or resizing operations. It is automatically selected after you drop a control onto a report.
