Cards allow you to display the difference between the actual and target values of a particular parameter. This difference is called delta.

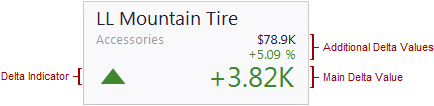

Delta is shown with a delta indicator (indicating whether the actual value is less than or greater than the target value) and delta values (representing this difference as an absolute value or a variation).
To customize settings that relate to the calculation and display of deltas, use the options buttons (the
icon) displayed next to the data item container in the Cards section of the DATA ITEMS pane.
These buttons invoke the Card Settings dialog.
Use it to define the conditions for displaying delta indication, specify which delta values should be displayed, and introduce the comparison tolerance.
This dialog also allows you to control various sparkline options. To learn how to display a sparkline within a Card, see the Sparkline topic.
Delta Values
You can specify which values should be displayed within cards. Use the Value type combo box in the Card Settings window to select the value that will be displayed as the main delta value. Additional delta values are selected automatically.
Value Type |
Result |
Actual Value |
Main: actual value Additional: absolute variation, percentage variation
|
Absolute Variation |
Main: absolute variation Additional: actual value, percentage variation
|
Percentage Variation |
Main: percentage variation Additional: actual value, absolute variation
|
Percentage of Target |
Main: percentage of target Additional: actual value, absolute variation
|
Delta Indication
You can specify the condition for displaying delta indication. To do this, use the Result indication combo box in the Card Settings window.
Condition |
Result |

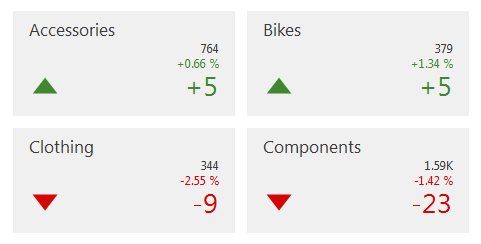

Greater is Good |
The 'good' indication is displayed if the actual value exceeds the target value; if the target value exceeds the actual value, the 'bad' indication is displayed.
|

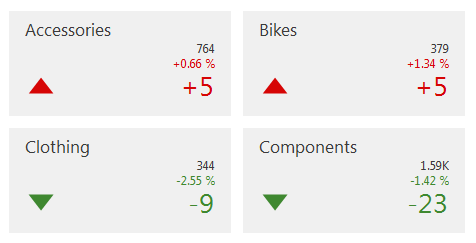

Less is Good |
The 'bad' indication is displayed if the actual value exceeds the target value; if the target value exceeds the actual value, the 'good' indication is displayed.
|

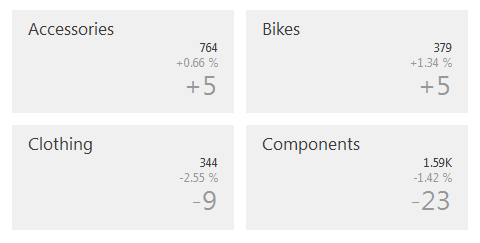

No Indication |
Indication is not displayed.
|

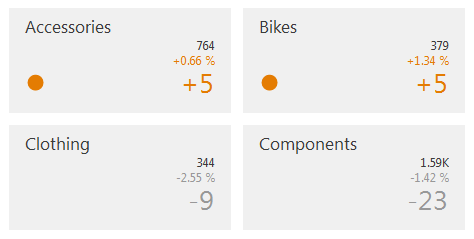

Warning if Greater |
A warning is displayed if the actual value exceeds the target value; otherwise, no indication is displayed.
|

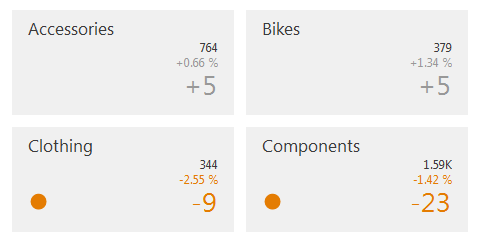

Warning if Less |
A warning is displayed if the target value exceeds the actual value; otherwise, no indication is displayed.
|
Comparison Tolerance
The comparison tolerance allows you to create more advanced conditions for displaying delta indication. For instance, you can specify that a specific indication should be displayed when the actual value exceeds the target value by 10% or by $2K.
Use the Threshold type combo box to select whether you wish to specify the comparison tolerance in percentage values or in absolute values. Then use the Threshold value box to specify the comparison tolerance.
